KUS Analog Trim Gauge / Trimmer (Vertical) 0–190 ohms - Black

sold in last

watch this article

26,22 €

incl. 20% VAT, plus

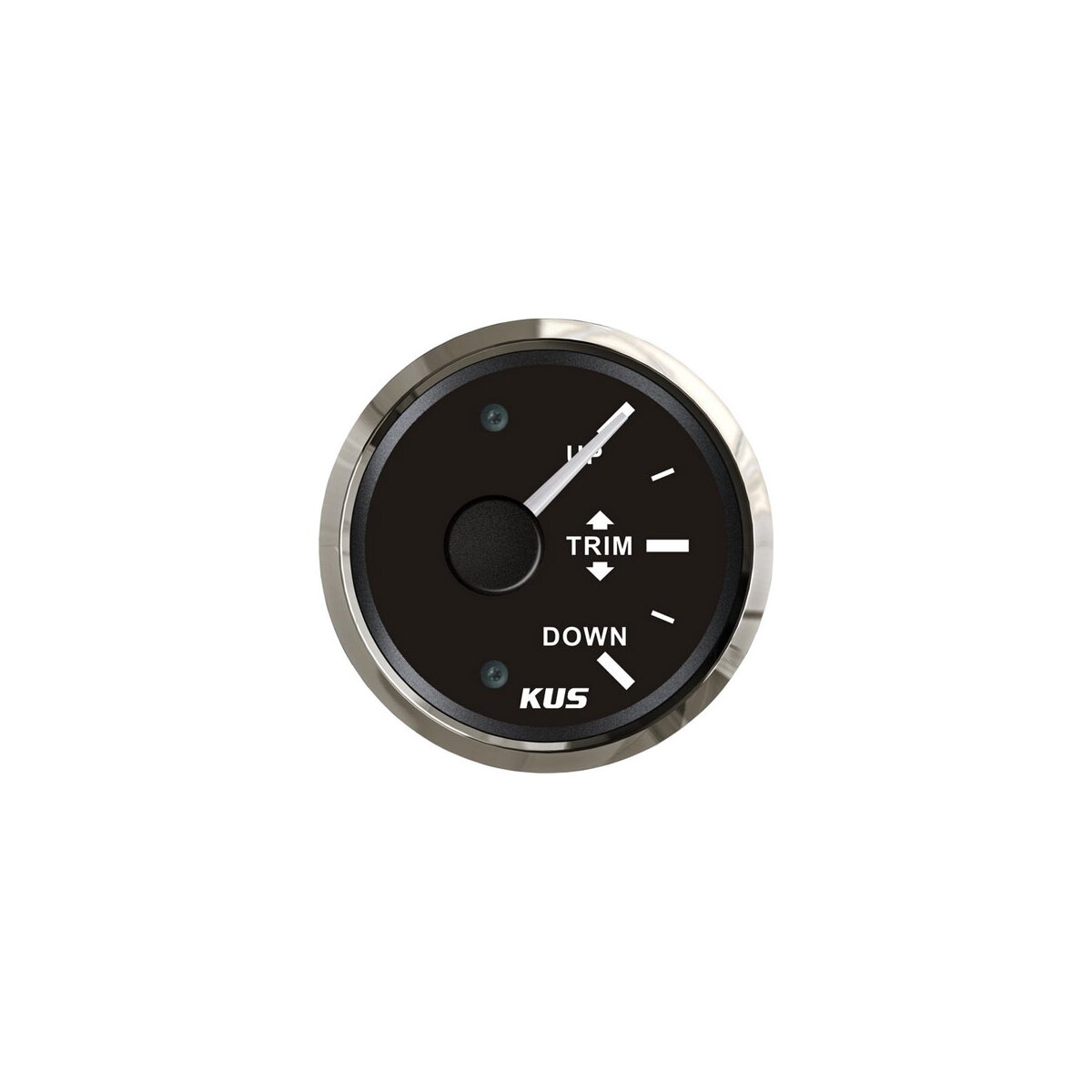

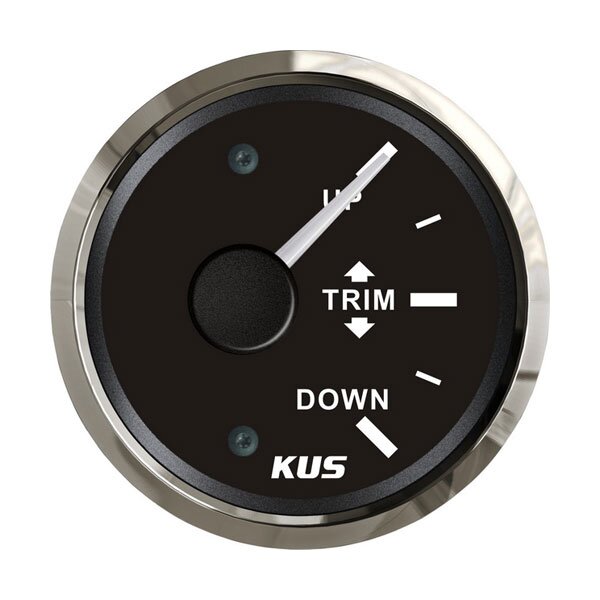

Version: Black (0–190 ohms) – Vertical KUS trim gauge (52 mm) with black dial and stainless steel bezel. Designed for the European standard resistance range of 0–190 ohms. Universal for 12V/24V.

For this product you will receive 26.22 Reward Points

Color black
black blackwhite white
Signal 0-190 Ohm
0-190 Ohm 0-190 Ohm160-0 Ohm 160-0 Ohm

Pcs.

Must be ordered. Ready for shipment in 3 days after order.

Delivery time: 9 - 11 Workdays

Stock in the external warehouse 15 piece
Delivery time: 3 Working days

KUS Analog Trim Gauge / Trimmer (Vertical) 0–190 ohms...

26,22 €

incl. 20% VAT, plus

Pcs.

KUS Marine Analog Trim Gauge VERTICAL 52 mm – Perfect Control Over Your Engine Angle

Optimize your boat’s trim and save a noticeable amount of fuel! The analog KUS trim gauge with vertical pointer movement (DN – UP) provides you with immediate and precise feedback at the helm regarding the current angle of your outboard or Z-drive. Only with the optimal trim setting can you achieve maximum planing speed and prevent dangerous rocking of the hull.

Thanks to the universalmarine mounting diameter of 52 mm (2"), the round gauge integrates seamlessly into any existing instrument panel. The polished stainless steel ring (AISI 316 / NIRO) provides lasting protection against corrosion in the saltwater-exposed cockpit.

⚠️ Important note on ohm compatibility (resistance):

To ensure your vertical trim gauge functions correctly, the ohm range must exactly match the sensor on your outboard motor or Z-drive. Please select the correct variant above:

0–190 ohms: The European standard, compatible with many modern engines and KUS standard sensors.
10–167 ohms: The American/international standard, primarily compatible with engines from **Mercury, Mariner, Volvo Penta, and Yamaha**.

Advantages & Technical Highlights at a Glance:

Intuitive vertical scale: Classic DN-to-UP display (Down to Up). The pointer moves from bottom to top, mirroring the actual movement of your engine.
100% Waterproof (IP67): The front of the dial is completely dust- and waterproof according to IP67. The double-layered, reinforced anti-fog glass guarantees a clear, condensation-free view at all times.
Dual Operating Voltage: Can be used directly in 12-volt and 24-volt vehicle electrical systems without additional conversion kits.

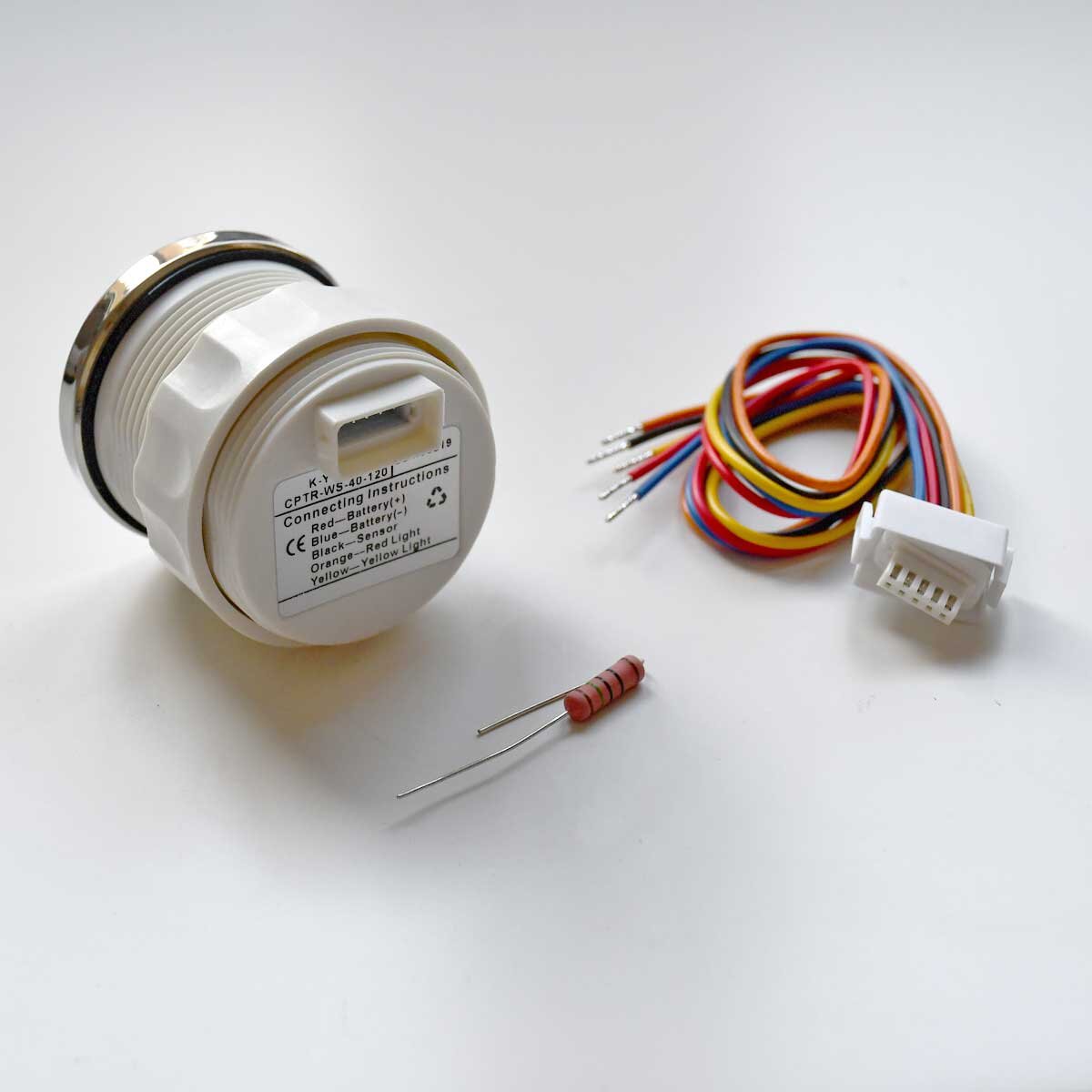

Selectable LED Backlighting: During installation, you can easily switch the backlight between a bright red/orange or yellow using the wiring.

Technical Data (Specifications):

Feature	Specification / Value
Manufacturer / Brand	KUS
Model Series	Sea V (Analog Vertical Trim Indicator)
Mounting Diameter	52 mm (2 inches)
Output Signals (Selectable)	0–190 ohms or 10–167 ohms
Front protection rating	IP67 (water- and dust-tight up to 1 meter)
Operating voltage	12 V / 24 V DC
