Hydrodrive MU50-TF inboard hydraulic kit for boats up to 10 mt (33ft)

11 watch this article
from 550,59 €
incl. 20% VAT , Free shipping
New technology of hydraulic steering system, for boats up to 10m with inboard engine.
For this product you will receive 550.59 Reward Points
Only 1 Pcs. left in stock!
Configure
Available immediately
Delivery time: 5 - 7 Workdays
Order within the next 18 hours and 58 minutes and we will ship your order tomorrow.
Hydrodrive MU50-TF inboard hydraulic kit for boats up to 10 mt (33ft)

Hydrodrive MU50-TF inboard hydraulic kit for boats up to 10...

from 550,59 €
incl. 20% VAT , Free shipping

Zubehörauswahl

optional
  • Hydrodrive TL1-16MRA-DS second station kit
    +473,95 €

    HYDRODRIVE - TL1-16MRA-DS second Station kit

    Description

    This installation kit is needed to connect a second station or flybridge with your Hydrodrive steering kit.

    It is compatible with all TL1-16 und TL1-16 MRA pumps and all MF115MRA / MF155-175W / MU50TFMRA steering-kits.

    The kit contais the following components:

    • 1 x TL1-16 MRA-T pump mit tee fittings
    • 1 x 5m (16') twin-hose kit
    • 1 x hydraulik oil
    • Fittings
    Quantity: 1
  • Hydrodrive twin hose extension kit for steering systems -...
    +58,49 €

    HYDRODRIVE - Twin hose extension kit for steering Systems - 1,00 m

    Description

    This kit offers you an easy way to extend the standard twin hose lines of all Hydrodrive steering kits. These Twin hoses have a lenght of 1,00 meter (3') and are ready to use with pre-installed connectors / Fittings AC516.

    Quantity: 1
  • Hydrodrive twin hose extension kit for steering systems -...
    +60,50 €

    HYDRODRIVE - Twin hose extension kit for steering Systems - 2,00 m

    Description

    This kit offers you an easy way to extend the standard twin hose lines of all Hydrodrive steering kits. These Twin hoses have a lenght of 2,00 meter (6.5') and are ready to use with pre-installed connectors / Fittings AC516.

    Quantity: 1
  • Hydrodrive twin hose extension kit for steering systems -...
    +63,53 €

    HYDRODRIVE - Twin hose extension kit for steering Systems - 2.50 m

    Description

    This kit offers you an easy way to extend the standard twin hose lines of all Hydrodrive steering kits. These Twin hoses have a lenght of 2.50 meter (8') and are ready to use with pre-installed connectors / Fittings AC516.

    Quantity: 1
  • Hydrodrive twin hose extension kit for steering systems -...
    +66,55 €

    HYDRODRIVE - Twin hose extension kit for steering Systems - 3.00 m

    Description

    This kit offers you an easy way to extend the standard twin hose lines of all Hydrodrive steering kits. These Twin hoses have a lenght of 3.00 meter (10') and are ready to use with pre-installed connectors / Fittings AC516.

    Quantity: 1
  • Hydrodrive twin hose extension kit for steering systems -...
    +72,61 €

    HYDRODRIVE - Twin hose extension kit for steering Systems - 4.00 m

    Description

    This kit offers you an easy way to extend the standard twin hose lines of all Hydrodrive steering kits. These Twin hoses have a lenght of 4.00 meter (13') and are ready to use with pre-installed connectors / Fittings AC516.

    Quantity: 1
  • Hydrodrive twin hose extension kit for steering systems -...
    +80,67 €

    HYDRODRIVE - Twin hose extension kit for steering Systems - 5.00 m

    Description

    This kit offers you an easy way to extend the standard twin hose lines of all Hydrodrive steering kits. These Twin hoses have a lenght of 5.00 meter (16') and are ready to use with pre-installed connectors / Fittings AC516.

    Quantity: 1
  • Hydrodrive twin hose extension kit for steering systems -...
    +86,72 €

    HYDRODRIVE - Twin hose extension kit for steering Systems - 6.00 m

    Description

    This kit offers you an easy way to extend the standard twin hose lines of all Hydrodrive steering kits. These Twin hoses have a lenght of 6.00 meter (20') and are ready to use with pre-installed connectors / Fittings AC516.

    Quantity: 1
  • Hydrodrive EXTGTN-14-10 ellbow extension kit 90°
    +78,66 €

    HYDRODRIVE - EXTGTN-14-10 ellbow kit 90°

    Beschreibung

    This extension kit allows you to rotate the hoses 90°. Works with all TL1 and TL2 pumps. (1/4" Fittings)

    Quantity: 1
  • Hydrodrive MRA-Line Lock-Valve (Anti-Feedback)
    +280,34 €

    HYDRODRIVE - MRA-Line Lock Valve (In line mounting)

    Description

    This lock valve prevents any hydraulic pressure feedback to the steering wheel (anti-feedback). This means kickbacks from the engine to the steering wheel are prevented. In addition prevents a built-in bypass valve damage in case of overpressure.

    Also included is a 0.75m twin hose with pre-installed fittings for easy in-line installation of the lock valve between a TL1 or TLS steering pump and the standard factory included twin hose kit.

    Quantity: 1
  • Hydrodrive MBY4 by-pass valve
    +172,44 €

    HYDRODRIVE - MBY4 bypass Valve (inbaord application)

    Description

    This bypass valve is used with inboard system for safety purposes. It mounts near the cylinder and bypasses it in case the pump fails, allowing you to move the cylinder (rudder) by hand. In some countries it is an obligation to have it installed.

    Also included is a 2.00m twin hose kit with pre-installed fittings for easy installation.

    Quantity: 1

Steuerradauswahl

optional
  • Hydrodrive steering wheel 16100-HEE - aluminium / black...
    +99,83 €

    HYDRODRIVE - Steering wheel 16100-HEE in black

    Description

    This steering wheel is made of semi hard PU-Foam with aluminium spokes and aluminium hub

    It has a Diameter of 340 mm (13,4") and a 3/4 shaft measurement.



    Quantity: 1
  • Hydrodrive steering wheel 16121-VSB - stainless steel /...
    +118,99 €

    HYDRODRIVE - Steering wheel 16121-VSB in stainless steel / black

    Description

    This steering wheel is absolutely insensitive to all weather influences.

    This steering wheel is made from black polyurethane and has polished Stainless steel spokes and center. The hub is made from aluminium. It has a Diameter of 350 mm (13.8") and a 3/4 shaft measurement.

    Quantity: 1
  • Hydrodrive steering wheel 16100-HDS - stainless steel...
    +150,25 €

    HYDRODRIVE - Steering wheel 16100-HDS in stainless steel

    Description

    This steering wheel is absolutely insensitive to all weather influences.

    This steering wheel is made from polished Stainless steel. The hub is made from aluminium. It has a Diameter of 370 mm (14.6") and a 3/4 shaft measurement.

    Quantity: 1
  • Hydrodrive steering wheel 16100-HDS - stainless steel...
    +146,22 €

    HYDRODRIVE - Steering wheel 16100-HDS in stainless steel

    Description

    This steering wheel is absolutely insensitive to all weather influences.

    This steering wheel is made from polished Stainless steel. The hub is made from aluminium. It has a Diameter of 420 mm (16.5") and a 3/4 shaft measurement.

    Quantity: 1
  • Hydrodrive steering wheel 16020-VRB 35 - stainless steel...
    +89,75 €

    HYDRODRIVE - Steering wheel 16020-VRB 35 in black

    Description

    This steering wheel is made of black megol with stainless steel spokes and Aluminium hub.

    It has a Diameter of 350 mm (13,8") and a 3/4 shaft measurement.

    Quantity: 1
  • Hydrodrive steering wheel 16020-VRB 40 - stainless steel...
    +105,88 €

    HYDRODRIVE - Steering wheel 16020-VRB 40 in black

    Description

    This steering wheel is made of black megol with stainless steel spokes and Aluminium hub.

    It has a Diameter of 400 mm (15,8") and a 3/4 shaft measurement.

    Quantity: 1
  • Hydrodrive steering wheel 16020-VRW 35 - stainless steel...
    +96,81 €

    HYDRODRIVE - Steering wheel 16020-VRW 35 in white

    Description

    This steering wheel is made of white megol with stainless steel spokes and Aluminium hub.

    It has a Diameter of 350 mm (13,8") and a 3/4 shaft measurement.

    Quantity: 1
  • Hydrodrive steering wheel 16020-VRW 40 - stainless steel...
    +118,99 €

    HYDRODRIVE - Steering wheel 16020-VRW 40 in white

    Description

    This steering wheel is made of white megol with stainless steel spokes and Aluminium hub.

    It has a Diameter of 400 mm (15,8") and a 3/4 shaft measurement.

    Quantity: 1
  • Hydrodrive steering wheel 16020-VRG 35 - stainless steel...
    +96,81 €

    HYDRODRIVE - Steering wheel 16020-VRG 35 in grey

    Description

    This steering wheel is made of grey megol with stainless steel spokes and Aluminium hub.

    It has a Diameter of 350 mm (13,8") and a 3/4 shaft measurement.

    Quantity: 1
  • Hydrodrive MSL Lever - black (Ø 360 mm)
    +130,08 €

    HYDRODRIVE - MSL Lver in black

    Description

    This Lever is made of black anodized aluminium and Comes with hub and screws.

    It has a travel diameter of 360 mm (14").

    Quantity: 1

Your configuration

product/group price
incl. 20% VAT , Free shipping

HYDRODRIVE - MU50-TF inboard hydraulic system for boats up to 10m (33ft)

Description

Hydraulic steering system with a high-precision hardened, hot-pressed aluminum pump and a CNC-machined, anodized and painted pump housing. The cylinder is made of cold-drown, hardened and also anodized and painted aluminum.

The entire system was developed for professional use with high quality, innovative technology. Thanks to the universal fittings, the Hydrodrive steering can be used for all types of outboard motors and offers a simple installation process.

Auto lubricating IGUBAL® spherical bearing support.

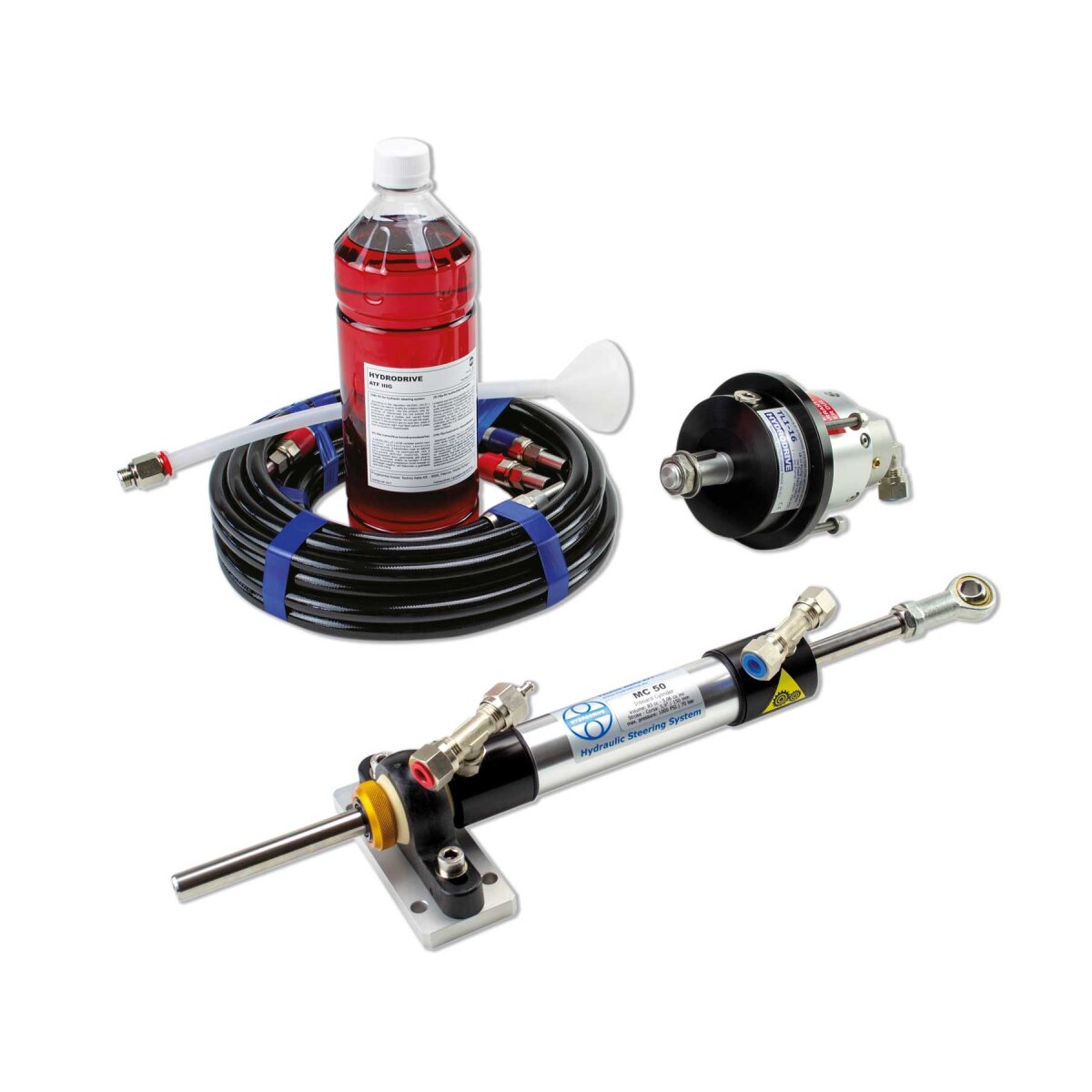

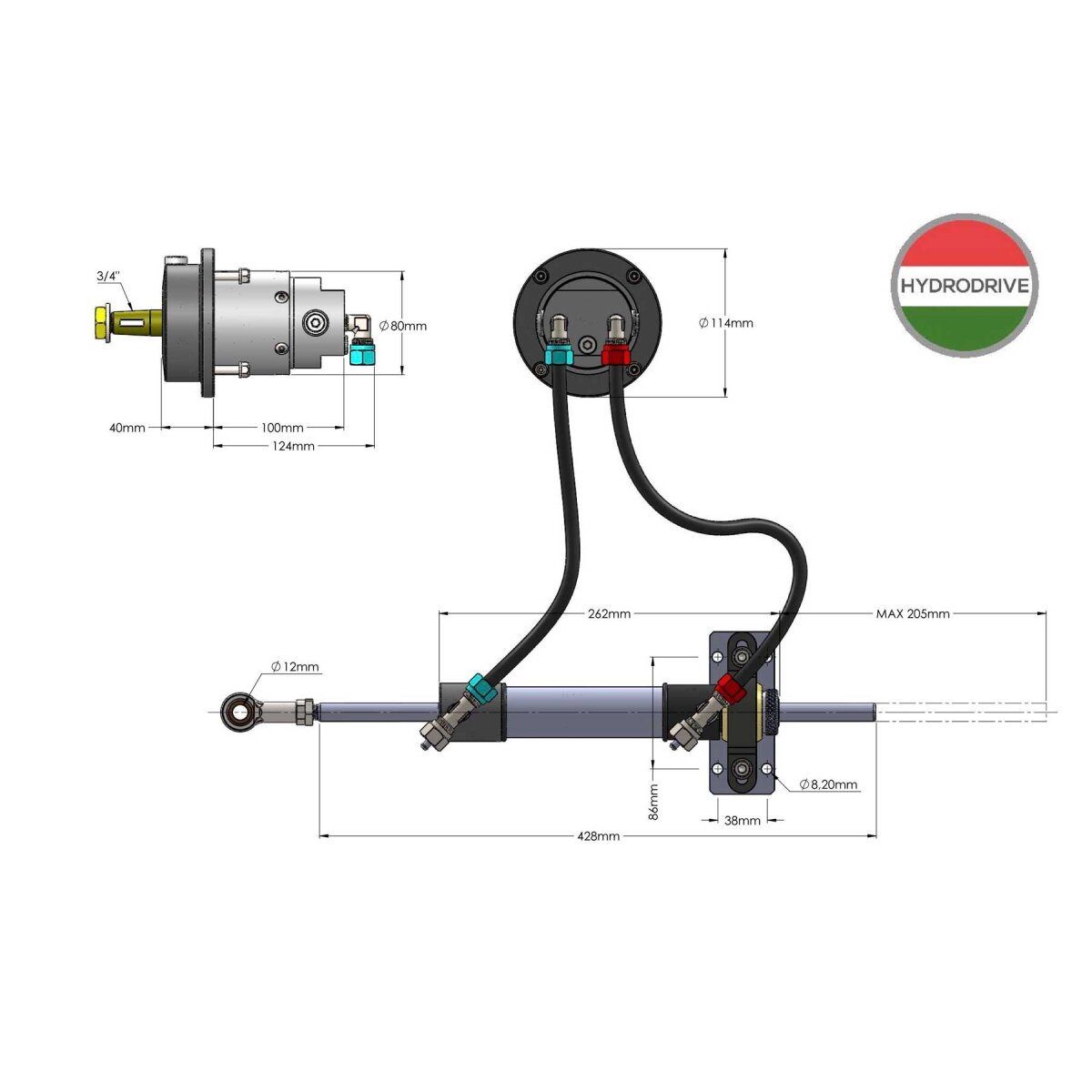

The kit contains the follwoing components:

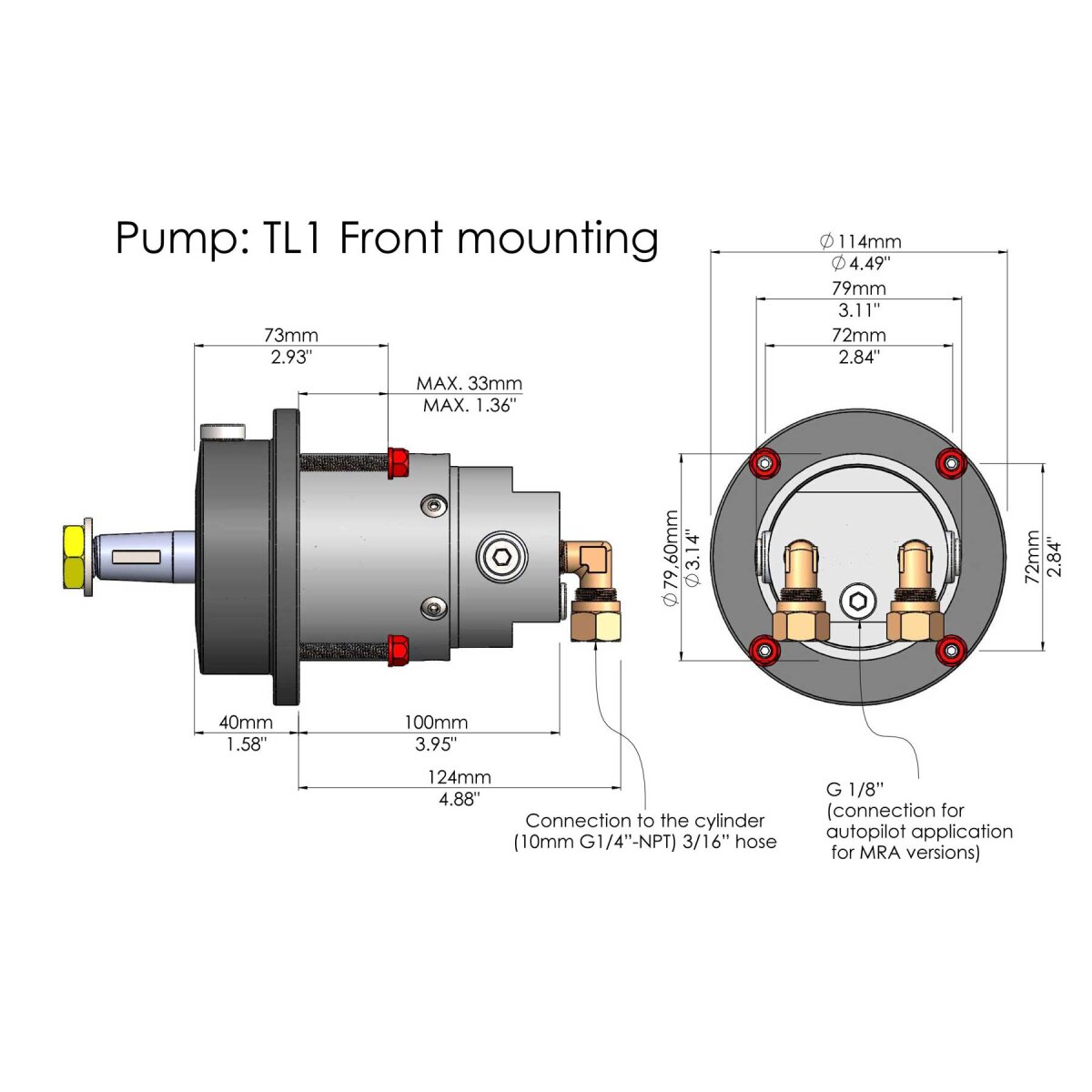

  • High Precision Hydraulic Pump TL1-16 (16 cc pump) with a max. compressive strength of 70 bar.
  • Hydraulic cylinder MC50 with a volume of 83 ccm, a max. compressive strength of 70 bar and a stroke of 150 mm.

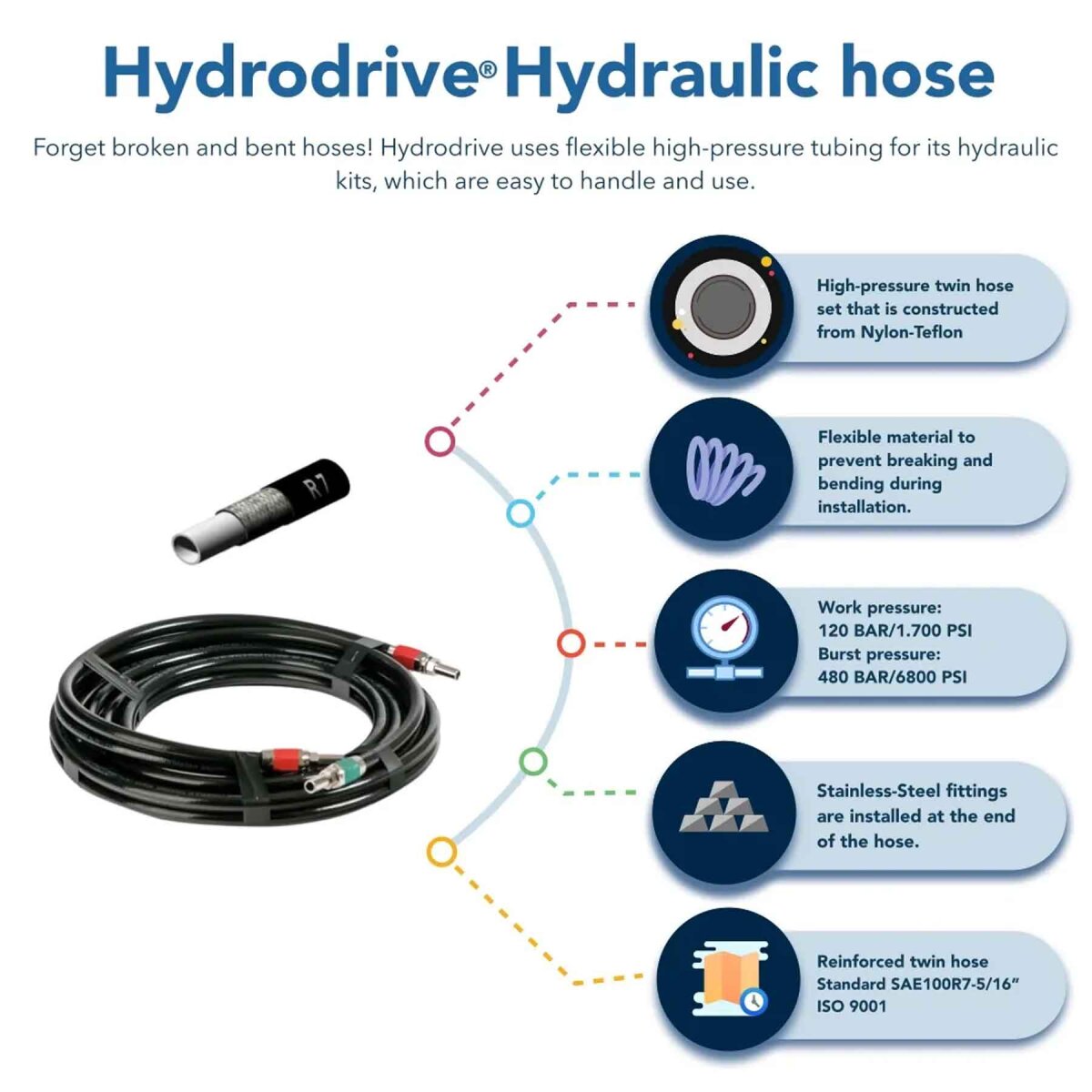

  • 5+5 meter (16') high pressure twin hose set with fittings.
  • 1 liter hydraulic oil E-HVLP 46 (temp.+60°/-30°.)
  • Filling-Kit

Technical Data:

  • 5 Turns
  • 387 kgf (853 lbf) Output Force
  • 58 kgm (450 lbf-ft) Torque
  • 35 Knots / 65 km/h max. Speed
  • 36 months warranty
Item information Value
Manufacturer: Hydrodrive
Category: Hydrodrive Steering Systems
SKU: 88200
GTIN: 5999886890056
Engine type‍:
Inboard
Shipping weight‍: 10,00 kg
Item weight‍: 9,00 kg

Manufacturer information:

Techno Italia Kft.
Kőrösi u. Hrsz: 12570/33
8000 Székesfehérvár
Ungarn

Advantages of a Hydrodrive steering system

Schnelle und einfache Monatge
Universell passender Zylinder für alle Arten von Aussenbordern
Pumpe und Zylinder kommen mit vormontierten Fittings
Die Schlauchleitungen haben ebenfalls vormontierte Fittings
Item review: 0 from 5 Stars

Write the first review for this item and help others make a purchase decision!:

Installation instruction for Hydrodrive steering kits

PDF Installation instruction for Hydrodrive steering kits
Click on the video to start the video embedding by Youtube.
